Open Closed Variable 10A Dual Room Temperature Thermostat With Red Temperature Dial

Name: Open Closed Variable 10A Dual Room Temperature Thermostat With Red Temperature Dial
Brand: Winston/OEM
Price: 3.83 USD

China Open Closed Variable 10A Dual Room Temperature Thermostat With Red Temperature Dial factory

Brand Name : Winston/OEM

Model Number : ZR011

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : USD 3.83 PCS

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Temperature range : 0-140

Accuracy : 99.99%

Protection type : IP20

Theory : Temperature Controller

Size : 67 x 50 x 46mm

Contact type : snap-action contact

Contact Now

Open Closed Variable 10A Dual Thermostat With Red Temperature Dial

● No and Nc in one casing
● Separate adjustable temperatures
● High switching capacity
● Terminals easily accessible
● Clip fixing

The ZR011 houses two separate themostats,allowing the independent control of heating and cooling or other equipment

Thermostat NC(normally closed)

Thermostat opens at temperature rise-for regulating heaters or for swithching signal devices.

Comes with red temperature dial.

Thermostat NO(Normally open)

Thermostat closes at temperature rise- for regulating filter fans and heat exchangers or for swithing signal devices.Comes with blue temperature dial.

TECHNICAL PARAMETER

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Service life	> 100 000 cycles
Max. switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W
Connection	4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN60715
Casing	plastic according to UL94 V-0. light grey
Weight	approx. 90g
Fitting position	variable
Operating/Storage temperature	-45 to +80°C (-49 to +176°F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Approvals	UL File No. E164102

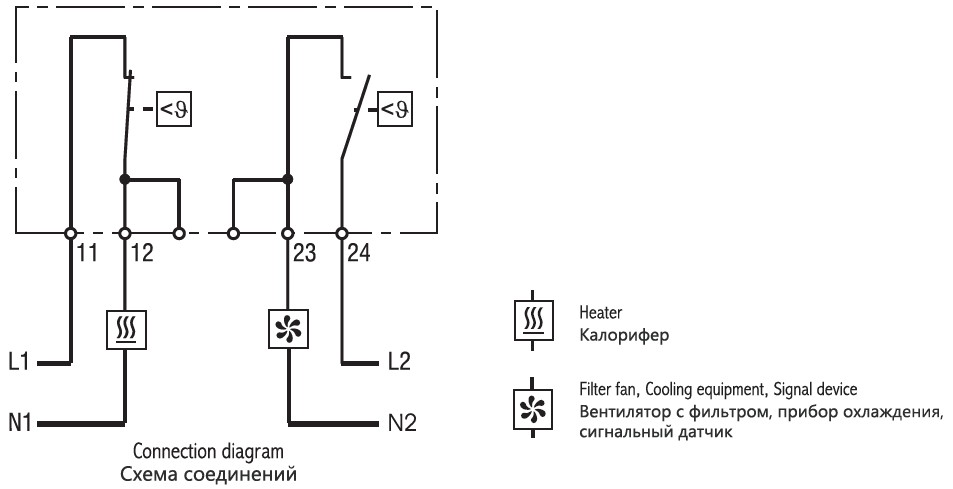

WIRING dimension
